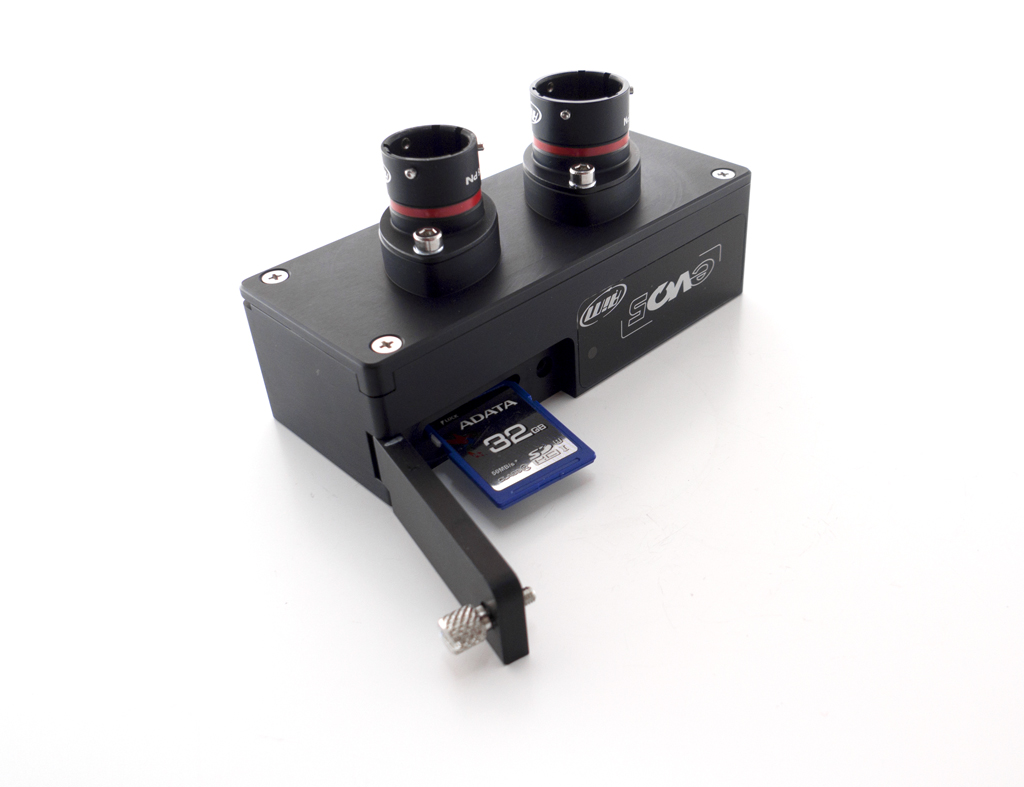

evo5
evo5
photo photo photo
evo5 is the evolution of the traditional datalogger that, all over the years, has become a standard de facto acquisition system in a huge amount of championships.
delivery status: available for immediate delivery
article number Description image €/unit* order
OAEV51-2KGevo5 w. 37p & 22p wiring harness, w. GPS evo5
2713,20 €
   Place in cart
OAEV51-KGevo5 w. 37p wiring harness, w. GPS evo5
2261,00 €
   Place in cart
OAEV51-Gevo5 without wiring harness, w. GPS evo5
1725,50 €
   Place in cart
* prices incl. VAT plus package and delivery.

Overview Data Logger

   AiM evo5 AiM evo4s  AiM ECULog
  evo5 evo4S ECULog
Supply
Power supply 9 - 15 VDC 9 - 15 VDC 9 - 15 VDC
Consumption mA (max.)  140  150 55
Inputs
Analog [optional] 8 [40] 5 [40] - [4]
Analog 0 - 5 V x x -
Analog 0 - 12 V x x -
ECU channels [max.] 120 120 120
Digital [optional] 6 [24] 4 [24] -
Thermocouple [optional] 2 [40] 5 [40] - [4]
Speed 4 2 -
Lap time GPS x x o
Lap time optical x x -
Lap time magnetic - - -
Rear  view camera - - -
Keyboard external - - -
RPM via ignition x x -
Output
Signal / Digital 2 1 -
CAN 2 1 1
Reference voltage 5V 5V -
Communication
CAN Interface 3 2 2
K-Line 1 1 1
RS232 1 1 1
USB x x x
WiFi x - -
Storage
Storage [optional] 4 [32] GB 4 [32] GB 4 [16] GB
Total sampling rate 8700 8700 8700
Sampling per channel 500 Hz 500 Hz 100 Hz
Others
Acceleration sensor tri-axial ± 5g tri-axial ± 5g -
Gyroscope tri-axial ± 90°/s tri-axial ± 5g -
Connectors Deutsch 37-/22-pin Binder 711 Binder 711, 7 & 5 pin
Road approval - - -
Display - - -
Alarm lights - - -
Shift lights - - -
Calculated channels x x x
Light sensor - - -
Measurements 114 x 47 x 59 mm 130 x 47 x 35 mm 61 x 45 x 27 mm
Weight 300 gr 330 gr 100 gr
Protection class IP65 IP65 IP65
Expansion
GPS x x o
Lambda o o 1
Displays o o -
SmartyCam o o o
TC-Hub 12 12 -
Channel Expansion / ACC 12 12 1
Shift Light Module o o -
Memory Module o o -
Remote Button Interface - - -
RIO02 - - -
Strada Logger - - -
MemoryKey - - -
x = Standard | o = optional | - = not possible| Digit = number of
