SmartyCam 3 Dual
SmartyCam 3 Dual
photo photo photo
All kits include a USB-C data connection cable, depending on the version 22-pin cable harness with Ethernet and Jack and a German operating manual (the free software can be found under the download tab on our homepage www.me-mo-tec.de). For connection to an AiM DataLogger, an additional CAN connection cable is required which is not included in the package.
delivery status: available for immediate delivery
article number description Info image /unit* order
OASHD3-120HSmartyCam 3 Dual 120° w. holder kit SmartyCam 3 Dual
3698,52 €
  Place in cart
OASHD3-120HFSmartyCam 3 Dual 120° w. bracket BC SmartyCam 3 Dual
3534,30 €
  Place in cart
OASHD3-120oHSmartyCam 3 Dual 120° without holder kit SmartyCam 3 Dual
3451,00 €
  Place in cart
OASHD3-84HSmartyCam 3 Dual 84° w. holder kit SmartyCam 3 Dual
3698,52 €
  Place in cart
OASHD3-84HFSmartyCam 3 Dual 84° w. bracket BC SmartyCam 3 Dual
3534,30 €
  Place in cart
OASHD3-84oHSmartyCam 3 Dual 84° without holder kit SmartyCam 3 Dual
3451,00 €
  Place in cart
OASHD3-67HSmartyCam 3 Dual 67° w. holder kit SmartyCam 3 Dual
3698,52 €
  Place in cart
OASHD3-67HFSmartyCam 3 Dual 67° w. bracket BC SmartyCam 3 Dual
3534,30 €
  Place in cart
OASHD3-67oHSmartyCam 3 Dual 67° without holder kit SmartyCam 3 Dual
3451,00 €
  Place in cart
* prices incl. VAT plus package and delivery.
The new SmartyCam 3 Dual is the ultimate Motorsport Camera with two bullet cam. This version is the flagship of the new SmartyCam 3 range and is designed for all racers who want to get the most out of every performance video on track. Dual Full HD camera system, video output, CAN connection , USB-C connection, Ethernet port are just some of the features of the SmartyCam 3 Dual: the most powerful camera in this range delivers great Full HD videos with all the information you need in the overlay.

The Technology of the SmartyCam 3 Dual is housed in a sturdy and splash-proof aluminium casing. Under the side cover is the SD card slot and the USB-C connection via which the individual configuration can be uploaded. The SD card is supported up to a memory size of 2TB.

As with the previous versions, an external GPS module can be connected to the camera, which allows you to display speed, lap time or position on the track without having to connect to the engine control unit or the data logger. The integrated ECU interface enables the recording of ECU data without having to use an additional data logger.

Logo CAN-Bus Technologie
CAN-Bus technology

Features AiM SmartyCam 3 Dual

  • 2 x bullet cam
  • Live overlay of motor data in the video (Data Overlay)
  • GPS over external antenna
  • Rechargeable lithium battery
  • up to 2 TB  storage (SD card)
  • ECU Interface
  • Aluminium case
  • TFT colour display | 240x320 Pixel

Connection example AiM SmartyCam 3 Dual

Technical data AiM SmartyCam 3 Dual

Display size

240x320 Pixel | 2.4"

Lens Low distorting Camera lens
Field of view 67°, 84° or 120°
Battery Rechargeable lithium battery (stand alone not possible)
Charging external 12V | USB-C |
Usage temperatures -10°C - +50°C
Power supply 9 - 15 Volt
Video Out 3G-SDI
Supported memory card SD card | max. 2 TB
Data Memory

about 5.0 GB per hour

Video format H.264 | 1920x1080 pixel @60 fps

1x Binder, 711, 5-p female

1x Deutsch 22-pin

1x SMA SDI Video out

2x SMA bullet connection

Auto power ON

Yes, if connected to AiM logger

Auto power OFF Yes
Auto Start/Stop recording Yes
Body Anodized aluminium

Main unit: 154,4 x 109,6 x 42,0 mm

Bullet camera: 24 x 48,2 mm


Main unit: 800 gr.

Bullet camera: je 45gr.

Waterproof IP65

Functions of the AiM SmartyCam 3 Dual

1 Locking SD card cover 2 USB-C connection and SD card slot 3
Connections for GPS or AiM logger | ECU , Video out and bullet cameras
4 Status LED 5 2.4", 240x320 pixel, TFT colour display 6 Metal buttons with different functions

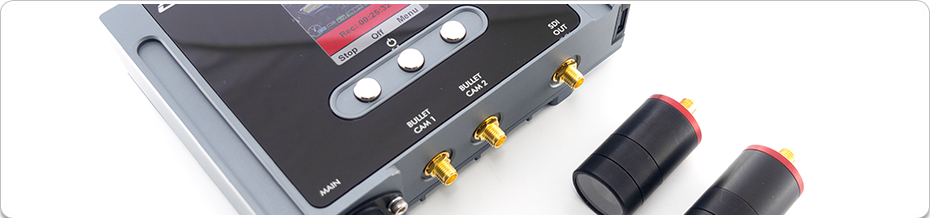

Connections of the AiM SmartyCam 3 Dual


Input for 22-pin wiring harness

2 SMA connector bullet camera-1 3
SMA connector bullet camera-2
4 SMA connector SDI Video Out


Data Overlay AiM SmartyCam 3 Dual

For the SmartyCam 3 Dual, you can freely select which parameters are located at which position in the live video. The following parameters are available for the data overlay:

Engine speed, accelerator position, speed, brake pedal position, temperatures, accelerations, pressures, position on the track, driver and team name, time / date, lap time, gear, team logo

The DataOverlay can be created and modified at any time with the RaceStudio 3 programme and transferred to the camera with the USB-C data transfer cable or SD card.




Pixels are not everything

With Global Shutter CMOS technology, image distortion is avoided during video recording. This is possible because the images are not captured "pixel by pixel" as conventionally, but simultaneously. The result is footage that is still captured at higher engine speeds without the so-called ripple effect.   The lens and the size of the sensor play an important role for cameras used in motor sports. It should also be robust and avoid distortions caused by fast changes of direction. In addition, there is the problem that both near and far things have to come across sharply in the video.
SmartyCam HD CMOS Sensor   AiM SmartyCam HD Kamera Technik



1 hour of recording takes about 5GB
  The videos of the SmartyCam 3 Sport are compressed to a user-friendly size without losses by the H.264 format. This means that we only need 5 GB for a one-hour Full HD recording.

These files are stored on SD cards. With current SD cards that have a storage capacity of up to 2 TB, you can record more than 400 hours of video without having to change the card.

When buying an SD card, pay attention to the read and write speeds. We recommend the SanDisk SDXC Extreme Pro / Ultra.

The optics

Normal optics of the SmartyCam HD compact: when mounted in the cross of the roll cage of touring cars and GT cars, the image width is from A-pillar to A-pillar, which means the complete windscreen.   Wide angle of the SmartyCam HD compact: with the same mounting, the field of vision expands from exterior mirror to exterior mirror, with the left one usually covered by the seat.
Optik AiM SmartyCam HD 67°   Optik AiM SmartyCam HD 84°


AiM SmartyCam HD Befestigung   There is a 1/4 inch thread in the holder of the bullet camera of the SmartyCam 3 Dual. This can be used to attach the finger camera to the vehicle using either a suction cup or a pipe claw.

Optionally and if prescribed by the organiser, the camera can be additionally secured with a wire rope.

  SmartyCam HD Rohrkrallenkit       SmartyCam HD Saugnapfkit

SmartyCam 3 Dual SmartyCam 3 Sport
Lap time GPS GPS
Acceleration GPS GPS
Data Overlay x x
Lap time GPS GPS
Speed GPS | vehicle GPS | vehicle
Acceleration x x
Data Overlay x x
RPM x x
Temperature x x
Throttle position x x
Brake pressure x x
Steering angle x x
Oil pressure x x
Brake x x
Gear x x
Oiltemperature x x
x = standard | o = optional | - = not possible | Digit = amount
