SmartyCam 3 Corsa
SmartyCam 3 Corsa
photo photo photo
The new SmartyCam 3 Corsa s the compact full HD motorsport camera with integrated ECU interface. This version is the flagship of the new compact SmartyCam 3 range and is designed for all racers who want to get the most out of every performance video on track.

Full HD camera system, CAN connection , ECU interface and USB-C connection are just some of the features of the SmartyCam 3 Corsa: the most powerful compact camera in this range delivers great Full HD videos with all the information you need in the overlay.
delivery status: available for immediate delivery
article number description Info image /unit* order
OASHC3-84HSmartyCam 3 Corsa 84° w. holder kit SmartyCam 3 Corsa
1688,61 €
  Place in cart
OASHC3-84SmartyCam 3 Corsa 84° without holder kit SmartyCam 3 Corsa
1606,50 €
  Place in cart
OASHC3-67HSmartyCam 3 Corsa 67° w. holder kit SmartyCam 3 Corsa
1688,61 €
  Place in cart
OASHC3-67SmartyCam 3 Corsa 67° without holder kit SmartyCam 3 Corsa
1606,50 €
  Place in cart
* prices incl. VAT plus package and delivery.
The new SmartyCam 3 Corsa s the compact full HD motorsport camera with integrated ECU interface. This version is the flagship of the new compact SmartyCam 3 range and is designed for all racers who want to get the most out of every performance video on track. Full HD camera system, CAN connection , ECU interface and USB-C connection are just some of the features of the SmartyCam 3 Corsa: the most powerful compact camera in this range delivers great Full HD videos with all the information you need in the overlay.

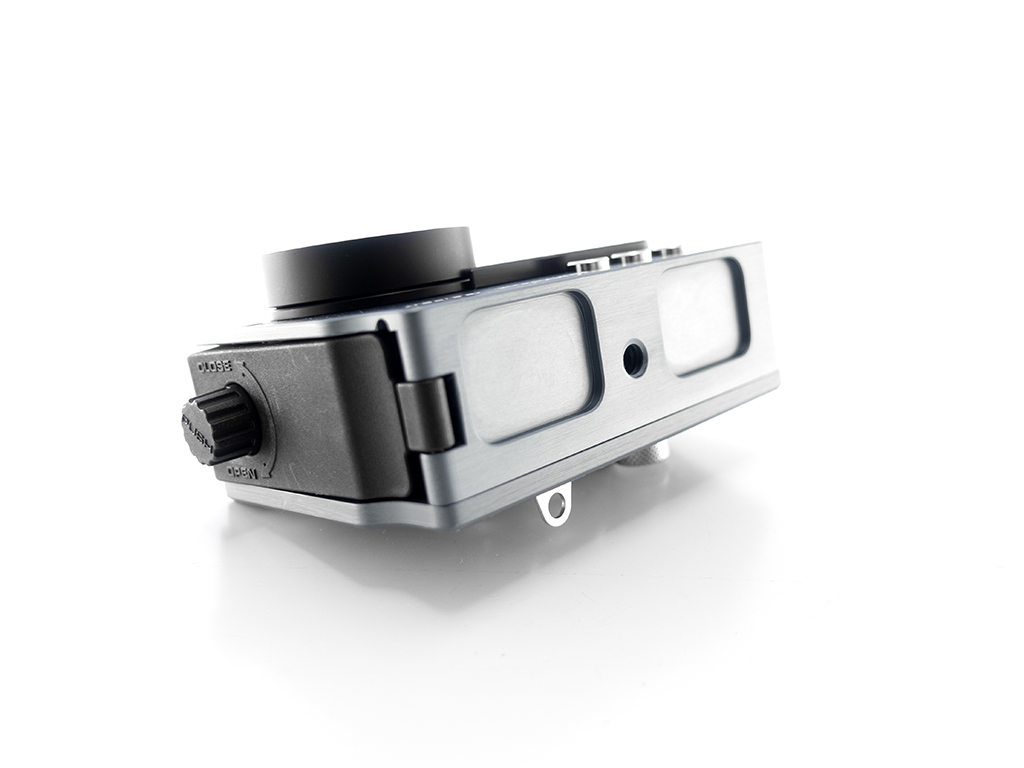

The technology of the SmartyCam 3 Corsa is housed in a sturdy and splash-proof aluminium casing. Under the side cover is the SD card slot and the USB-C connection via which the individual configuration can be uploaded. The SD card is supported up to a memory size of 2TB.

As with the previous versions, an external GPS module can be connected to the camera, which allows you to display speed, lap time or position on the track without having to connect to the engine control unit or the data logger. The integrated ECU interface enables the recording of ECU data without having to use an additional data logger.



Logo CAN-Bus Technologie
CAN-Bus Technology

Special Features AiM SmartyCam 3 Corsa

  • Overlay of the engine data live in the video(Data Overlay)
  • GPS over external antenna
  • Rechargeable Lithium Battery
  • Up to 2 TB  storage (SD Karte)
  • ECU Interface
  • Aluminium housing
  • TFT colour display| 128x128 Pixel



Connection example AiM SmartyCam 3 Corsa



Technical Data AiM SmartyCam 3 Corsa

Display measurements 128x128 Pixel | 1.45"
Lens Low distortion lens
Diagonal field of view 67° or 84°
Battery Rechargeable lithium battery (no stand alone possible)
Charging external 12V | USB-C |
Ambient temperature -10°C - +50°C
Power supply 9 - 15 Volt
Memory cards SD cards | max. 2 TB
Data storage ca 5.0 GB per hour
Video format H.264 | 1920x1080 Pixel @60 fps
Connector 1x Binder 711 7 pin
2x Binder 711 5 pin
Automatic power on Yes, when connected to an AIM logger
Automatic power off Yes
Automatic recording Yes
Housing material Anodised aluminium
Dimensions Housing: 102,2 x 63,0 x 46,5 mm
Weight Housing: 280 gr
Protection class IP65

The functions of the AiM SmartyCam 3 Corsa

AiM SmartyCam 3 Corsa Funktionen
1 SD card cover lock 2 USB-C connection and SD card slot 3 Camera lens SmartyCam Full HD
4 Aluminium housing 5 1,45", 128x128 Pixel, TFT Colour display 6 Metal push-buttons with different functions

The connections of the AiM SmartyCam 3 Corsa

AiM SmartyCam 3 Corsa Anschlüsse
1 Binder 711 7 pin, ECU-Interface
external microphone
2 Binder 711 5 pin, für internal AiM CAN-Bus 3 Binder 711 5 pin, für external GPS-Modul



SmartyCam 3 Sport SmartyCam 3 Corsa SmartyCam 3 GP SmartyCam 3 Dual
Standard
Lap time GPS GPS GPS GPS
Speed GPS GPS | ECU GPS | ECU GPS | ECU
Acceleration GPS GPS GPS GPS
Data Overlay x x x x
Racing
Lap time GPS GPS GPS GPS
Speed GPS | Vehicle GPS | Vehicle GPS | Vehicle GPS | Vehicle
Acceleration x x x x
Data Overlay x x x x
RPM x x x x
Temperature x x x x
Throttle position x x x x
Brake pressure x x x x
Steering angle x x x x
Oil pressure x x x x
Brake x x x x
Gear x x x x
Oil temperature x x x x

x = standard | o = optional | - = not possible | Digit = amount
